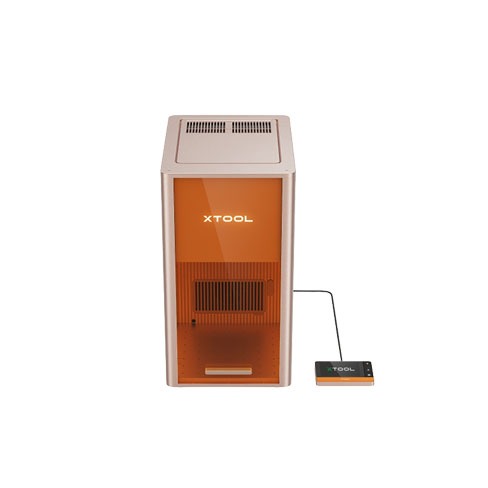

xTool F2 Ultra UV 5W UV Laser Engraver

The xTool F2 Ultra UV 5W UV Laser Engraver is designed for highly detailed engraving on glass, crystal, acrylic, plastics, metal, ceramic, and other materials that can be difficult to process with traditional diode or fiber lasers.

For customers new to laser equipment, the biggest difference is simple, a UV laser uses a shorter 355nm wavelength and a “cold processing” method that minimizes heat transferred into the material. Instead of relying primarily on heat to create the mark, the UV laser breaks molecular bonds at the surface, helping reduce burning, charring, discoloration, and dark edges on heat-sensitive materials.

This makes the F2 Ultra UV especially well-suited for glass and crystal personalization, fine-detail engraving, technical plastics, ceramics, photo engraving, and other applications where precision and a clean, finished appearance are important. One of its standout capabilities is creating 3D designs within clear glass and crystal without engraving the outer surface, allowing businesses to produce crystal portraits, memorial pieces, awards, keepsakes, and dimensional designs. The 2.8" x 2.8" inner engraving area supports 3D models, while xTool Studio can help generate 3D designs from images or text.

With engraving speeds up to 15,000 mm/s, dual 48MP cameras, LiDAR autofocus and a laser spot size of just 0.02 x 0.02 mm, the F2 Ultra UV combines high-speed production with extremely fine detail for both personalization and small-batch production.

Features:

• 5W UV Laser – Uses a 355nm wavelength and cold-processing technology for highly detailed engraving with minimal heat impact. This help reduce burning, charring, discoloration, and dark edges on glass, plastics, and other heat-sensitive materials
• 3D Inner Engraving – Creates floating designs inside compatible clear glass and crystal without engraving or damaging the outer surface
• 2.8" x 2.8" (70 x 70 mm) inner engraving area for crystal portraits, awards, memorials, keepsakes and dimensional designs
• Ultra-Fine Engraving – 0.02 x 0.02 mm laser spot produces highly detailed text, photos, logos, patterns and technical markings
• Vector fitting resolution down to 0.001 mm for precision engraving applications
• High-Speed Processing – Engraving speeds up to 15,000 mm/s for faster personalization, batch production and repeat jobs
• Dual 48MP Cameras – Provide a detailed workspace preview for precise artwork positioning, visual alignment and batch processing with camera positioning accuracy down to 0.2 mm
• LiDAR Autofocus – Automatically measures material distance to help establish the proper focus before processing
• Wide Material Compatibility – Engraves glass, crystal, acrylic, wood, metal, leather, plastic, rubber, silicone, ceramic and more
• Material Cutting – Cuts compatible plastics, fabric, leather, acrylic, paper, wood and other materials
• Cuts basswood up to 0.59" (15 mm) and acrylic up to 0.47" (12 mm) using multiple passes
• Surface Engraving – Standard 7.9" x 7.9" (200 x 200 mm) processing area
• Expands to 7.9" x 19.7" (200 x 500 mm) with the optional Auto Streamline Conveyor
• Maximum Processing Height – accommodates objects up to 5.9" (150 mm) high
• Rotary Engraving Compatible – Engrave cylindrical products up to 5.9" (150 mm) in diameter with an optional rotary attachment
• Batch Processing – Camera-assisted positioning helps repeat artwork across multiple blanks and production pieces
• xTool Studio Software – Supports 2D and 3D project files, camera positioning, material settings, and AI-assisted design tools
• AI 2D-to-3D Generation – Create compatible 3D engraving models from images or text prompts for inner engraving projects
• Class 4 Laser – Appropriate laser safety practices and protective equipment are required during operation

Add Ons:

• xTool RA3 Chuck Rotary
• xTool Auto Conveyor
• xTool AP2 Air Purifier

Specifications:

• Work Area –
  • Surface Engraving – 7.9" x 7.9" (200 x 200 mm)
  • Inner Engraving – 2.8" x 2.8" (70 x 70 mm)
• Extended Surface Engraving – 7.9" x 19.7" (200 x 500 mm) with optional conveyor
• Wattage – 5W UV Laser
• Laser Wavelength – 355 ± 5 nm
• Maximum Processing Speed – 590.55 ips (15,000 mm/s)
• Maximum Processing Height – 5.11" (130 mm)
• Maximum Rotary Engraving Diameter – 5.9" (150 mm)
• Maximum Wood Cutting Thickness – Up to 0.59" (15 mm) basswood using multiple passes
• Maximum Acrylic Cutting Thickness – Up to 0.47" (12 mm) using multiple passes
• 5W UV Laser – Cold-processing UV technology is especially useful for glass, plastics and other heat-sensitive materials
  • Engraves glass, crystal, acrylic, wood, metal, leather, plastic, rubber, silicone, ceramic and other compatible materials
  • Material Cutting – Cuts glass, plastics including PE, PP, EVA and PET, fabric, leather, acrylic, paper, wood and other compatible materials
• Laser Spot Size – 0.02 x 0.02 mm
• Camera System – Dual 48MP cameras
• Camera Positioning Accuracy – 0.2 mm
• Focus – Autofocus
• Ranging System – LiDAR
• Inner Engraving Motion Resolution – 0.00133 mm
• Vector Fitting Resolution – 0.001 mm
• Laser Size – 11.6" x 16.9" x 20.5" (294 x 429 x 520 mm)
• Weight – 49.6 lbs (22.5 kg)
• Maximum Machine Input Power – 348W
• Software – xTool Studio
• Operating System – Windows & macOS
• Connection – Wi-Fi / USB / IP
• Laser Safety Classification – Class 4
• Supported 2D File Types – SVG / DXF / JPG / JPEG / GIF / PNG / BMP / WEBP
• Supported 3D File Types – STL / OBJ / AMF / 3MF / GLB / PLY

Applications:

• Awards, Memorials & Keepsakes – Create crystal awards, trophies, recognition pieces, memorials, photo keepsakes, wedding gifts, anniversary pieces and other personalized crystal products
• Glass, Crystal & Bottle Personalization – Engrave glassware, crystal blocks, coasters, decorative glass, perfume bottles, wine bottles, whiskey bottles and other premium glass products
• Jewelry, Gifts & Promotional Products – Add fine-detail engraving, names, logos, photos and graphics to jewelry, keepsakes, ornaments and compatible glass, acrylic, plastic and metal merchandise
• Industrial Tagging & Component Marking – Add serial numbers, QR codes, data-matrix codes, logos and identification markings to technical plastics, ceramics, electronics housings and manufacturing components
• Small-Batch & Photo Engraving – Reproduce detailed photos, portraits and graphics while using camera-assisted positioning for repeatable multi-item production

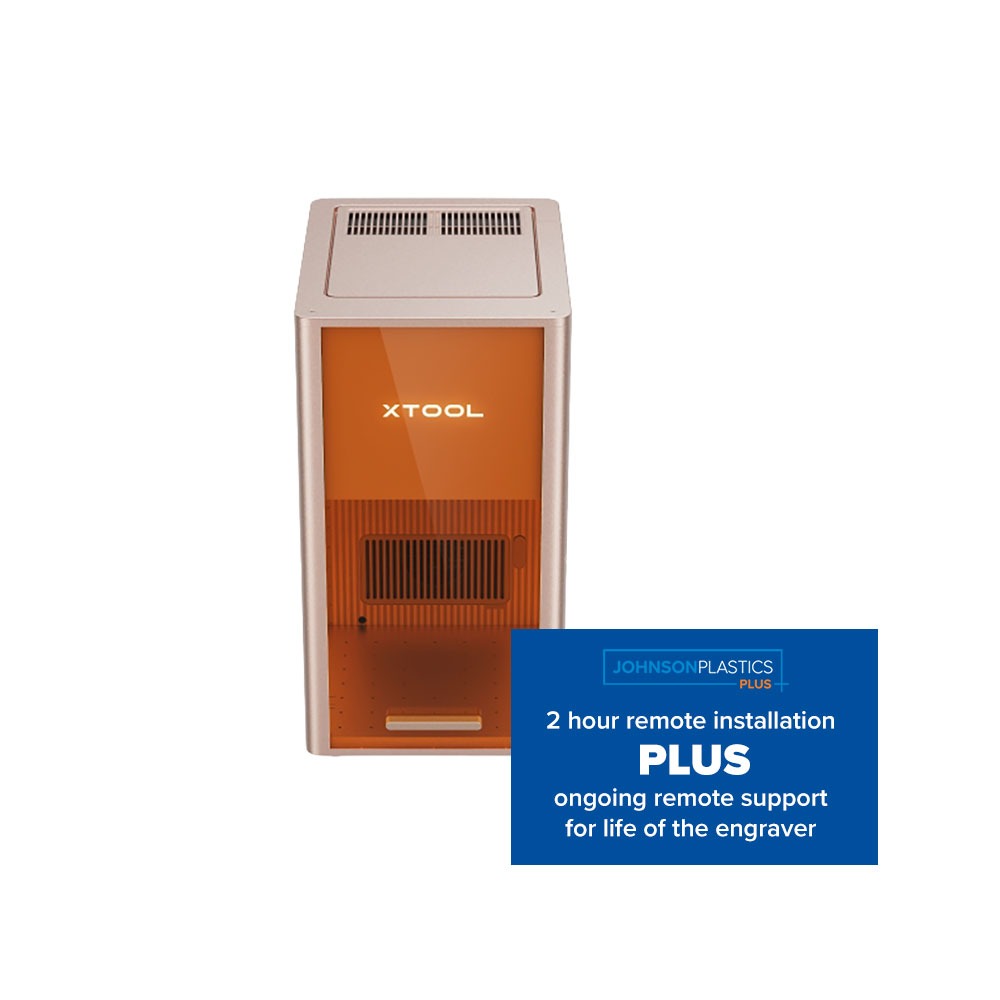

XTOOL F2 ULTRA UV 5W UV LASER ONLY PACKAGE CONTENTS:

• (1) xTool F2 ultra UV 5W UV laser engraver
• (1) Touchscreen controller
• (1) Exhaust pipe
• (1) Power adapter
• (1) Power cable
• (1) USB cable
• (1) Key
• (1) Slatted panel/honeycomb
• (1) L-Shaped positioning piece
• (1) Lint-Free cloth
• (1) Screwdriver
• (1) Sample material pack
• (1) Quick start guide
• (1) Safety instructions
• $125 JPP BUCKS – Redeem on sheet + blanks

XTOOL F2 ULTRA UV 5W UV LASER AIR PURIFIER BUNDLE CONTENTS:

• (1) xTool F2 ultra UV 5W UV laser engraver
• (1) xTool SafetyPro™ AP2 air purifier
• (1) Diode desktop laser sample kit ($60 value)
• (1) 4” x 6” glass photo stand
• (1) Touchscreen controller
• (1) Exhaust pipe
• (1) Power adapter
• (1) Power cable
• (1) USB cable
• (1) Key
• (1) Slatted panel/honeycomb
• (1) L-Shaped positioning piece
• (1) Lint-Free cloth
• (1) Screwdriver
• (1) Sample material pack
• (1) Quick start guide
• (1) Safety instructions
• $125 JPP BUCKS – Redeem on sheet + blanks

XTOOL F2 ULTRA UV 5W UV LASER ALL-IN-ONE BUNDLE CONTENTS:

• (1) xTool F2 ultra UV 5W UV laser engraver
• (1) xTool SafetyPro™ AP2 air purifier
• (1) xTool RA3 chuck rotary
• (1) xTool Auto Streamline™ conveyor for F2 Ultra UV
• (1) Diode desktop laser sample kit ($60 value)
• (1) 30oz Simply engraving tumbler
• (1) 4” x 6” glass photo stand
• (1) Touchscreen controller
• (1) Exhaust pipe
• (1) Power adapter
• (1) Power cable
• (1) USB cable
• (1) Key
• (1) Slatted panel/honeycomb
• (1) L-Shaped positioning piece
• (1) Lint-Free cloth
• (1) Screwdriver
• (1) Sample material pack
• (1) Quick start guide
• (1) Safety instructions
• $125 JPP BUCKS – Redeem on sheet + blanks

What is a UV laser?

A UV laser uses ultraviolet light at a much shorter wavelength than common diode or fiber lasers. The xTool F2 Ultra UV uses a 355nm UV laser.

The easiest way to understand the difference is that a UV laser uses a cold-processing method that transfers significantly less heat into the material while engraving. This helps reduce burning, charring, discoloration, and heat damage, making UV especially useful for glass, crystal, plastics, ceramics, and other materials where a clean, detailed finish is important.

What is the difference between a UV laser and a diode or fiber laser?

Each laser technology is better suited for different types of projects.

A UV laser is especially useful for glass, crystal, plastics, ceramics, and precision engraving because it creates detailed marks with minimal heat impact.

A diode laser is generally better suited for cutting and engraving common materials such as wood, leather, paper and dark opaque acrylic.

Fiber and MOPA lasers are generally better suited for direct and deep metal engraving, as well as metal processing.

The F2 Ultra UV is the better choice when fine detail, glass and crystal engraving, or heat-sensitive materials are the priority.

What is 3D inner engraving?

3D inner engraving creates a design inside a transparent material such as compatible glass or crystal rather than engraving the outside surface.

The UV laser focuses energy at precise points inside the material to build a dimensional image. This makes it possible to create floating portraits, memorial designs, logos, text, and other 3D artwork while leaving the exterior surface intact.

The F2 Ultra UV has a 2.8" x 2.8" (70 x 70 mm) inner engraving area.

Can the xTool F2 Ultra UV engrave glass?

Yes. Glass and crystal are two of the primary materials for the F2 Ultra UV.

It supports surface engraving, fine-detail engraving and 3D inner engraving on compatible glass and crystal products. UV cold processing helps produce clean results while reducing the heat damage, cracking and charring associated with some other laser processes.

Can the xTool F2 Ultra UV engrave inside glass and crystal?

Yes. The F2 Ultra UV supports 3D inner engraving within compatible transparent glass and crystal.

The machine has a dedicated 2.8" x 2.8" (70 x 70 mm) inner engraving area and can use compatible 3D models to create designs below the material's surface.

Can the xTool F2 Ultra UV engrave metal?

Yes. The 5W UV laser can mark and engrave compatible metals.

However, the F2 Ultra UV is primarily designed for precision engraving, glass and crystal processing, plastics, and other applications where minimal heat impact and very fine detail are important. Customers primarily focused on deep metal engraving, high-speed metal marking, or metal cutting may be better suited for a fiber or MOPA laser.

Does the xTool F2 Ultra UV have a camera?

Yes. The F2 Ultra UV includes dual 48MP cameras for artwork positioning, workspace preview and batch alignment.

The camera positioning system provides accuracy down to approximately 0.2 mm.

Does the xTool F2 Ultra UV automatically focus?

Yes. The F2 Ultra UV includes autofocus and a LiDAR ranging system to measure material distance and help establish the proper focal position before processing.

Can the xTool F2 Ultra UV engrave tumblers and bottles?

Yes. Pair the F2 Ultra UV with a compatible xTool rotary attachment for 360° engraving on cylindrical products.

The machine supports rotary engraving on objects up to approximately 5.11" (130 mm) in diameter, making it suitable for compatible bottles, tumblers, glassware and other cylindrical products.

Is the xTool F2 Ultra UV a Class 4 laser?

Yes. The xTool F2 Ultra UV is classified as a Class 4 laser.

Users should follow all required Class 4 laser safety procedures and use appropriate protective equipment when operating the machine.

Who is the xTool F2 Ultra UV best for?

The xTool F2 Ultra UV is a strong choice for personalization businesses, awards and recognition companies, gift shops, glass and crystal engravers, jewelry businesses, industrial marking applications, and serious makers who need extremely fine detail.

It is especially valuable for businesses that want to offer premium glass and crystal personalization, 3D inner engraving, detailed photo engraving or precision marking on materials that may be difficult to process cleanly with traditional diode or fiber lasers.
