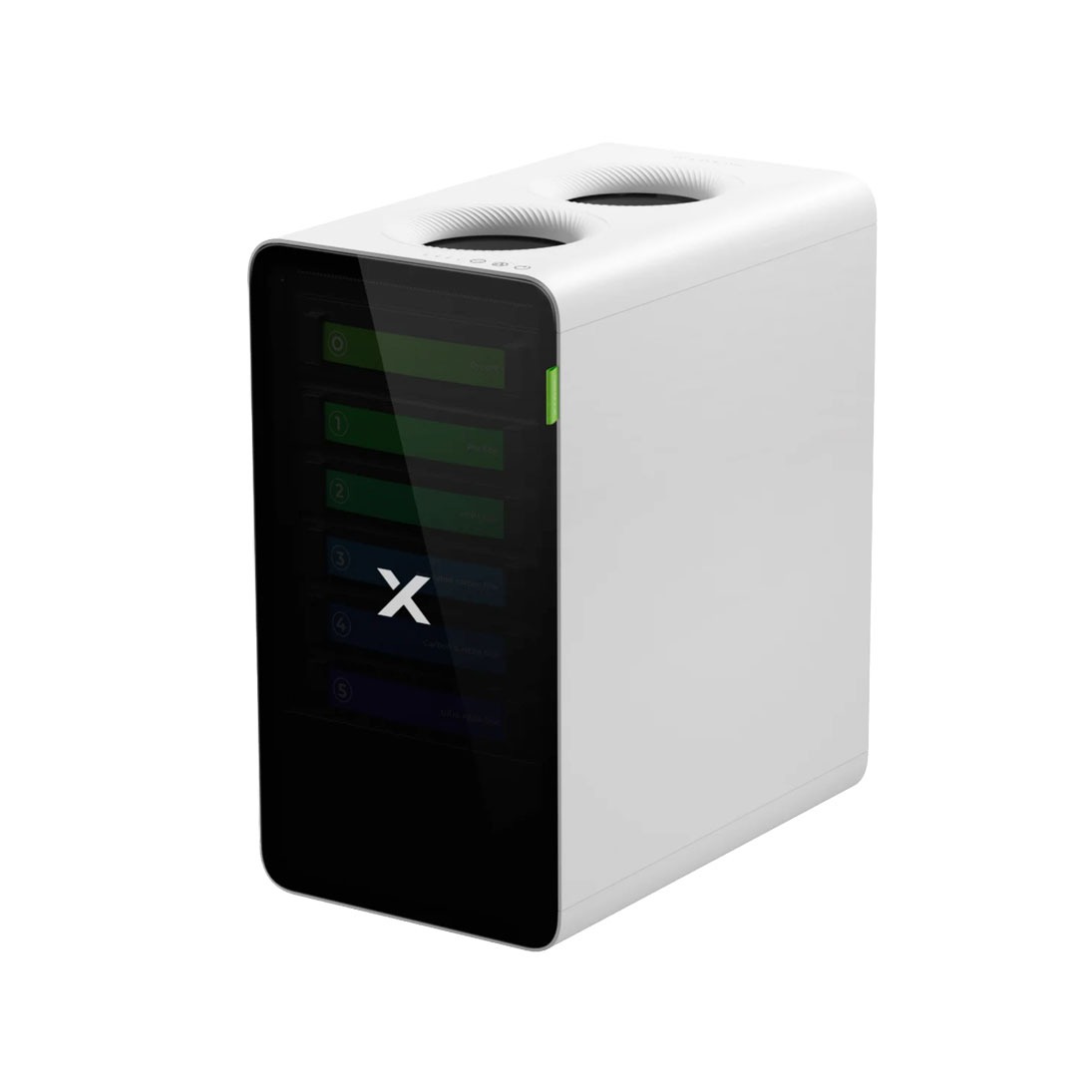

xTool SafetyPro™ AP2 Air Purifier with SuperCyclone

The xTool SafetyPro™ AP2 Air Purifier with SuperCyclone helps capture smoke, dust, particles, and odors produced during laser engraving and cutting. Designed for desktop and mid-size laser systems with extraction requirements of 150 m³/h or less, the AP2 delivers powerful filtration while extending filter life through xTool's SuperCyclone pre-separation technology.

Before smoke reaches the main filters, an array of 36 cyclones uses centrifugal force to separate approximately 99% of larger particles. Removing larger debris before it reaches the filter stack helps reduce clogging and can extend pre-filter life by up to 10 times compared with systems without cyclone separation.

The AP2 combines SuperCyclone separation with multiple stages of filtration to capture fine airborne particles and reduce odors created during laser processing. With 150 m³/h airflow, four adjustable fan speeds, automatic synchronization with compatible xTool lasers and real-time filter monitoring, the AP2 is designed for cleaner, more convenient laser operation in workshops, classrooms, studios and production environments.

Features:

• SuperCyclone Separation – 36 cyclones capture approximately 99% of large particles before they reach the main filters, helping extend pre-filter life by up to 10 times
• Multi-Layer Filtration – Combines SuperCyclone separation, a pre-filter, medium-efficiency filter, activated carbon filter, ultra-dense carbon mesh filter and high-efficiency filter to capture smoke, fine particles and odors
• High-Efficiency Particle Filtration – Removes 99.99% of PM2.5 and 99.97% of 0.3 μm particles under specified test conditions
• 150 m³/h Airflow – Provides extraction and filtration for compatible desktop and mid-size laser systems requiring 150 m³/h of fume extraction or less
• 4 Adjustable Fan Speeds – Adjust airflow based on the amount of smoke and fumes produced by the material and application
• Smart Laser Synchronization – Automatically starts and stops with compatible xTool lasers and supports material-based settings and real-time filter lifecycle monitoring
• Quiet Operation – Operates at approximately 55 dB for reduced disruption in workshops, studios, offices and classrooms
• Easy Filter Replacement – Magnetic pull-out door provides quick access to filter cartridges without disassembling the purifier
• Flexible Exhaust Setup – Adjustable PP exhaust tubing can be positioned to accommodate different workspace layouts
• Compatible xTool Lasers – Works with a range of xTool desktop laser systems, including the F2, F2 Ultra and F2 Ultra UV

Important Note – The SuperCyclone filter is reusable

Specifications:

• Airflow – 150 m³/h
• Cyclone Quantity – 36
• Airflow Control – 4 adjustable levels
• Noise Level – 55 dB
• Input Power – 220W
• Filter System –
  • SuperCyclone Separation
  • Pre-Filter
  • Medium-Efficiency Filter
  • Activated Carbon Filter
  • Ultra-Dense Carbon Mesh Filter
  • High-Efficiency Filter
• Machine Size – 11.4" x 19.3" x 21.3" (290 x 491 x 542 mm)
• Exhaust Port – Supports 3" exhaust pipe
• Recommended Extraction Requirement – 150 m³/h or less
• Compatible Machines – xTool F2, F2 Ultra Series, F1, F1 Ultra, M2, P2S, P2, S1, M1, M1 Ultra, D1, D1 Pro and other compatible machines
• Warranty – 1 year warranty
