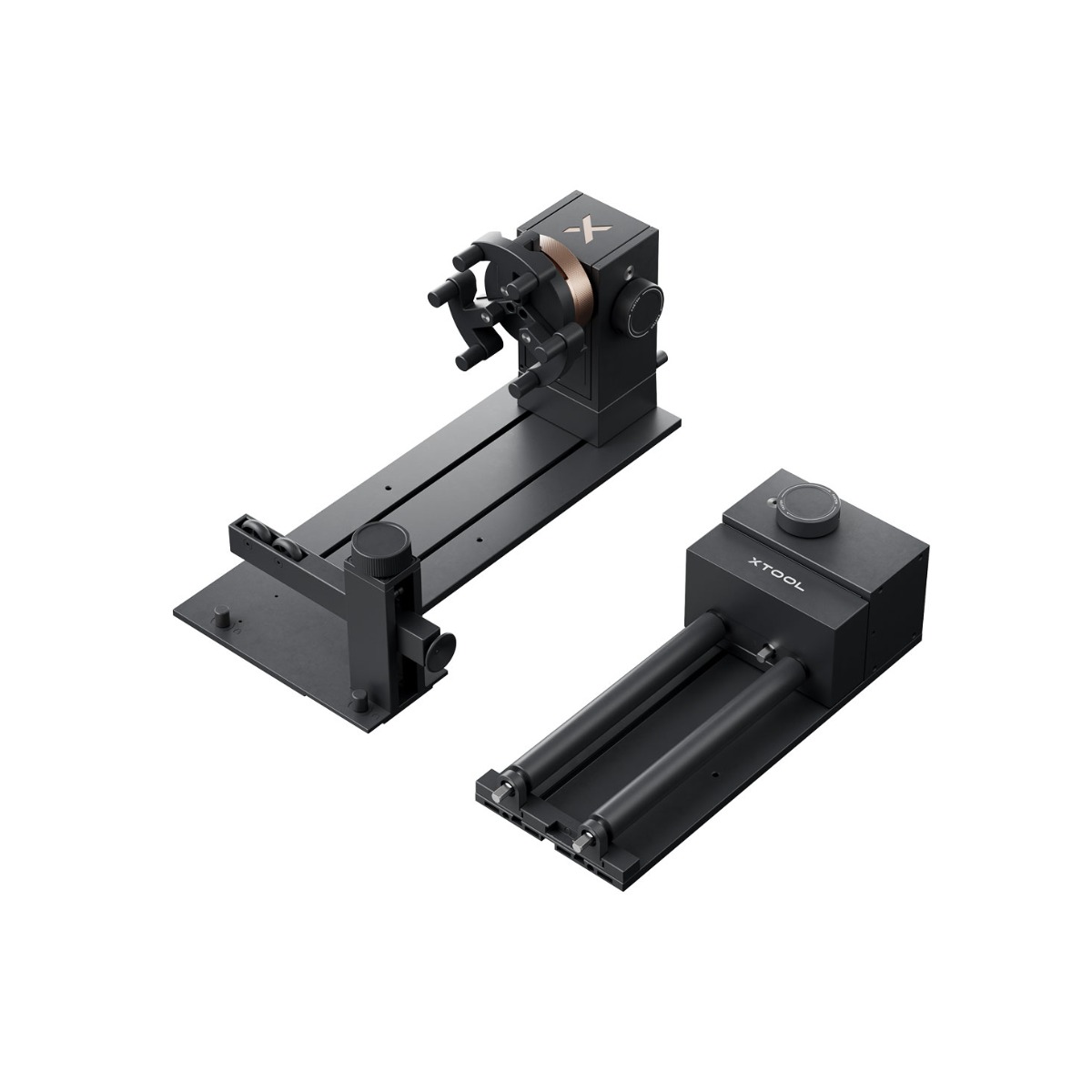

xTool RA3 Chuck Rotary
Take your rotary engraving to the next level with the xTool RA3 Rotary Attachment! Designed for fast, flexible engraving, the RA3 lets you personalize cylindrical, spherical, ring-shaped, and irregular objects with precision and ease.
The tool-free MagSwap™ design makes it easy to switch between chuck, roller, sphere, and ring engraving modes in seconds. When paired with compatible xTool machines, 360° LiDAR Mapping™ creates an accurate 3D preview to help confirm design placement, alignment, and focus before engraving.
With a maximum engraving diameter of 5.11" (130 mm) and length capacity up to 12", the RA3 opens up more possibilities for tumblers, drinkware, rings, spheres, and other custom products. It also supports full-wrap engraving and batch processing to help streamline production and expand your personalized product offerings.
Specifications
- Includes chuck rotary and roller rotary
- Plug & Play Setup – Connects directly to compatible xTool machines with no additional calibration required
- Chuck Engrave Diameter Range – up to 5.12" | 130 mm (objects gripped by the chuck jaws, such as tumblers, cups, bottles, or cylindrical parts)
- Roller Engrave Diameter Range – up to 5.12" | 3-198 mm (objects that sit on and rotate across the rollers. This mode handles the largest diameter objects)
- Sphere Engrave Diameter Range – 0.98"–3.94" | 25-100 mm (round/spherical objects such as ornaments or balls)
- Ring Engrave Diameter Range – 0.43"–2.76" | 11-70 mm (rings, bracelets, and other small circular objects)
- Compatible with xTool P Series, M Series, and F Series machines, excluding the F1 and F1 Lite. Includes Chuck Rotary and Roller Rotary.
| {{name}} (Pre-Applied Adhesive) | {{name}} | ||
|---|---|---|---|
| {{location.locationName}} | {{location.quantityAvailable}} pcs | ||
Take your rotary engraving to the next level with the xTool RA3 Rotary Attachment! Designed for fast, flexible engraving, the RA3 lets you personalize cylindrical, spherical, ring-shaped, and irregular objects with precision and ease.
The tool-free MagSwap™ design makes it easy to switch between chuck, roller, sphere, and ring engraving modes in seconds. When paired with compatible xTool machines, 360° LiDAR Mapping™ creates an accurate 3D preview to help confirm design placement, alignment, and focus before engraving.
With a maximum engraving diameter of 5.11" (130 mm) and length capacity up to 12", the RA3 opens up more possibilities for tumblers, drinkware, rings, spheres, and other custom products. It also supports full-wrap engraving and batch processing to help streamline production and expand your personalized product offerings.
Specifications
- Includes chuck rotary and roller rotary
- Plug & Play Setup – Connects directly to compatible xTool machines with no additional calibration required
- Chuck Engrave Diameter Range – up to 5.12" | 130 mm (objects gripped by the chuck jaws, such as tumblers, cups, bottles, or cylindrical parts)
- Roller Engrave Diameter Range – up to 5.12" | 3-198 mm (objects that sit on and rotate across the rollers. This mode handles the largest diameter objects)
- Sphere Engrave Diameter Range – 0.98"–3.94" | 25-100 mm (round/spherical objects such as ornaments or balls)
- Ring Engrave Diameter Range – 0.43"–2.76" | 11-70 mm (rings, bracelets, and other small circular objects)
- Compatible with xTool P Series, M Series, and F Series machines, excluding the F1 and F1 Lite. Includes Chuck Rotary and Roller Rotary.
| {{name}} (Pre-Applied Adhesive) | {{name}} | ||
|---|---|---|---|
| {{location.locationName}} | {{location.quantityAvailable}} pcs | ||
Due to size, this product is shipped on a pallet. After completing your purchase, a customer service member will contact you for shipping arrangements.
This product is non-returnable.
This product disqualifies your cart from free shipping.
This product is excluded from our Rewards points program because this ships direct from the supplier/vendor.
