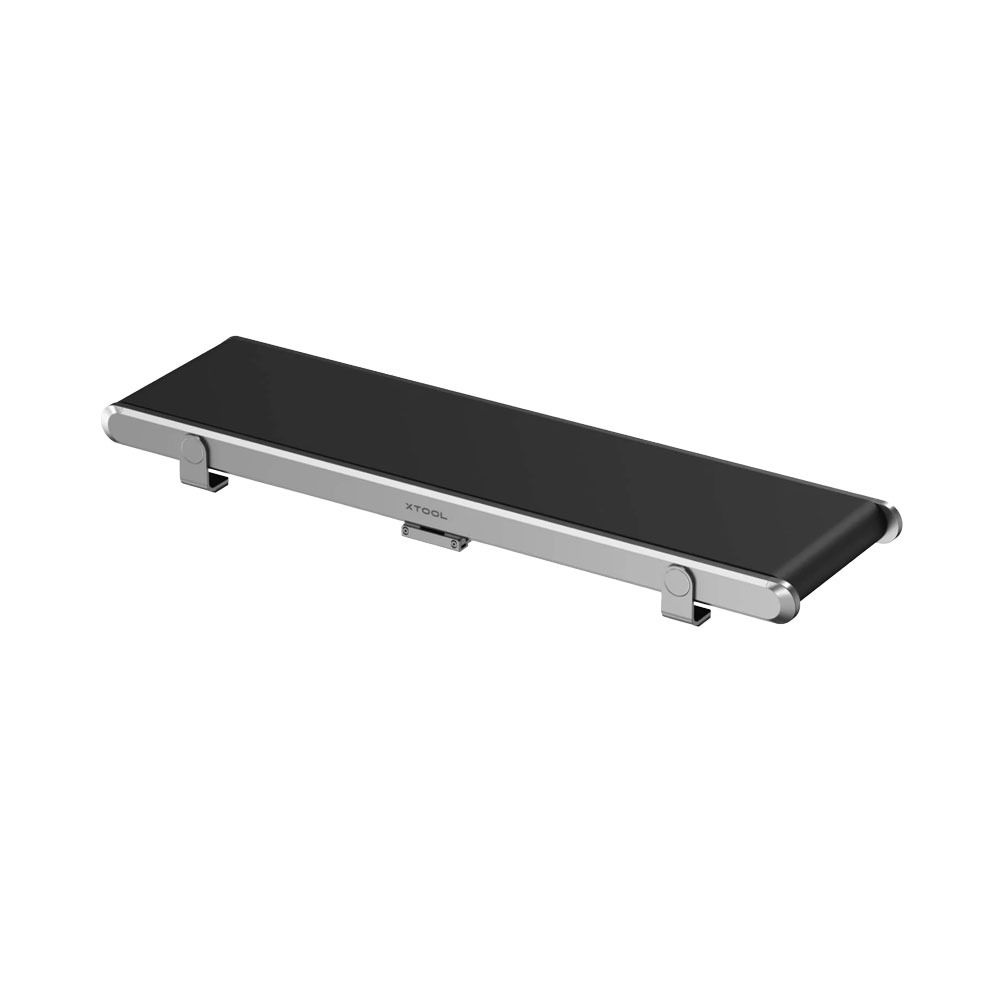

xTool Auto Streamline™ Conveyor for F2 Ultra & F2 Ultra UV

The xTool Auto Streamline™ Conveyor expands the processing capabilities of compatible xTool lasers by automatically feeding materials through the work area for larger projects and repeat production.

Designed for the xTool F2 Ultra, F2 Ultra UV and F1 Ultra, the conveyor increases the maximum processing area to 19.7" x 8.7" (500 x 220 mm). This gives users more room for oversized single pieces, such as signs, panels, and long photo projects, while also allowing multiple smaller blanks to be processed in a single workflow.

For batch production, the motorized conveyor moves materials through the laser while the camera identifies each piece's shape and position. xTool Studio then helps position artwork on the individual blanks, reducing manual alignment and making repetitive engraving jobs easier to manage. xTool supports both large-material processing and same-design batch processing with the F2 Ultra series.

Constructed from lightweight aluminum alloy with a durable PU conveyor belt, the Auto Streamline Conveyor turns a compact desktop laser into a more production-ready system for personalization shops, makers and businesses processing larger quantities of products.

Features:

• Automatic Conveyor Processing – Motorized belt feeds oversized materials or multiple blanks through the laser without manual repositioning
• Expanded Work Area – Increases the maximum processing area to 19.7" x 8.7" (500 x 220 mm) for longer signs, panels, photos and larger production batches
• Camera-Assisted Batch Processing – Compatible laser cameras identify each material’s shape and position while xTool Studio helps place designs accurately across multiple pieces
• Large Material Processing – Automatically moves longer materials through the laser to complete projects that exceed the standard work area
• Handles Thicker Materials – Accommodates processing materials up to approximately 3.2" (81.5 mm) thick
• Lightweight Aluminum Frame – Aluminum-alloy construction provides stability while keeping the conveyor portable
• Secure Machine Attachment – Included fastening hardware keeps the conveyor properly aligned with compatible xTool lasers during processing
• Compatible xTool Lasers – Designed for xTool F2 Ultra, F2 Ultra UV, F2 Ultra Single and F1 Ultra

Specifications:

• Maximum Processing Area – 19.7" x 8.7" (500 x 220 mm)
• Maximum Processing Material Thickness – less than 3.2" (81.5 mm)
• Product Size – 39.4" x 11.4" x 3.5" (1002 x 290 x 89 mm)
• Product Weight – approximately 18.8 lbs (8.545 kg)
• Package Size – 44.1" x 15.7" x 6.9" (1120 x 400 x 175 mm)
• Belt Material – PU
• Frame Material – Aluminum alloy
• Working Temperature – 32°F–95°F (0–35°C)
• Connection – Connection cable to compatible xTool laser
• Compatible Machines –
  • xTool F2 Ultra
  • xTool F2 Ultra Single
  • xTool F2 Ultra UV
  • xTool F1 Ultra
