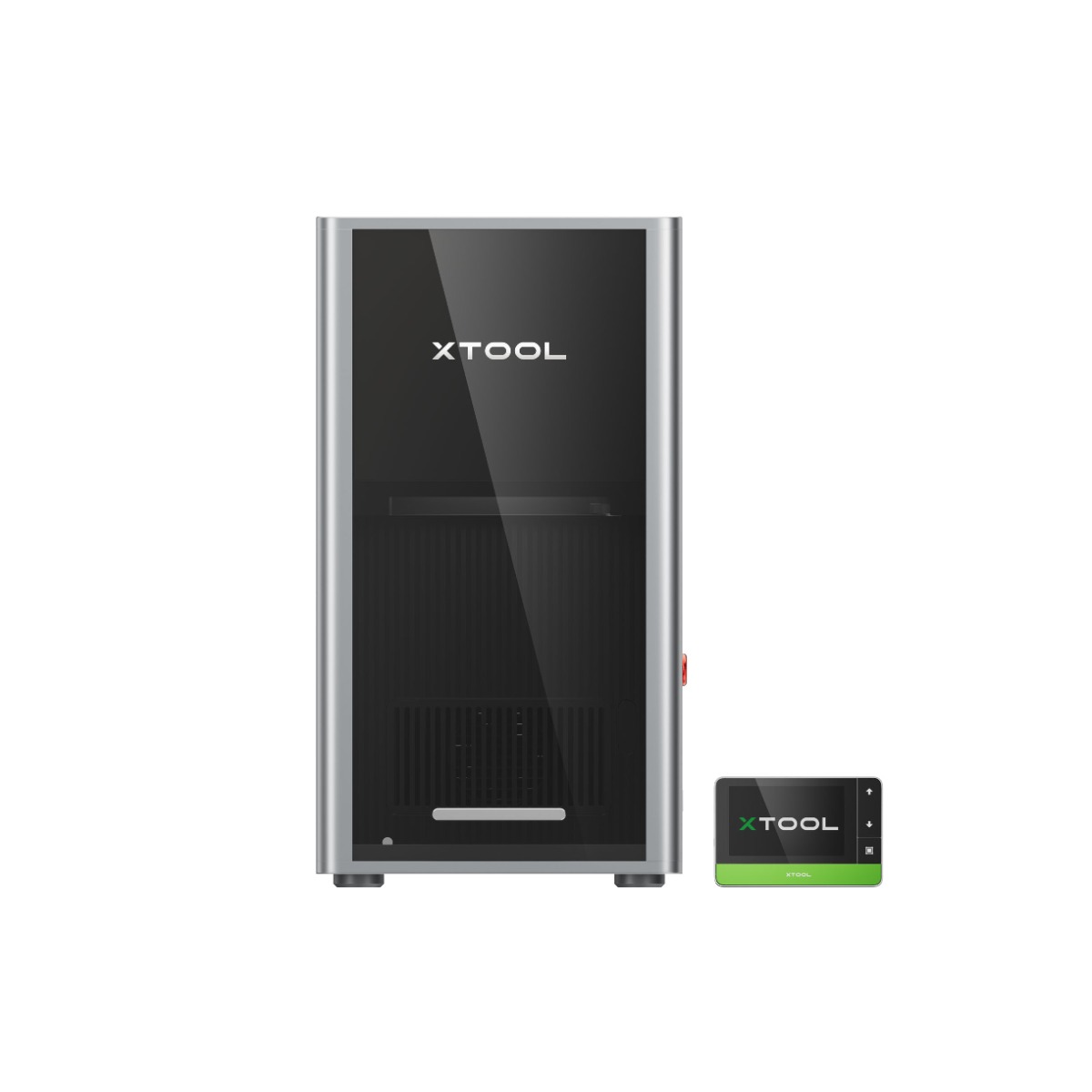

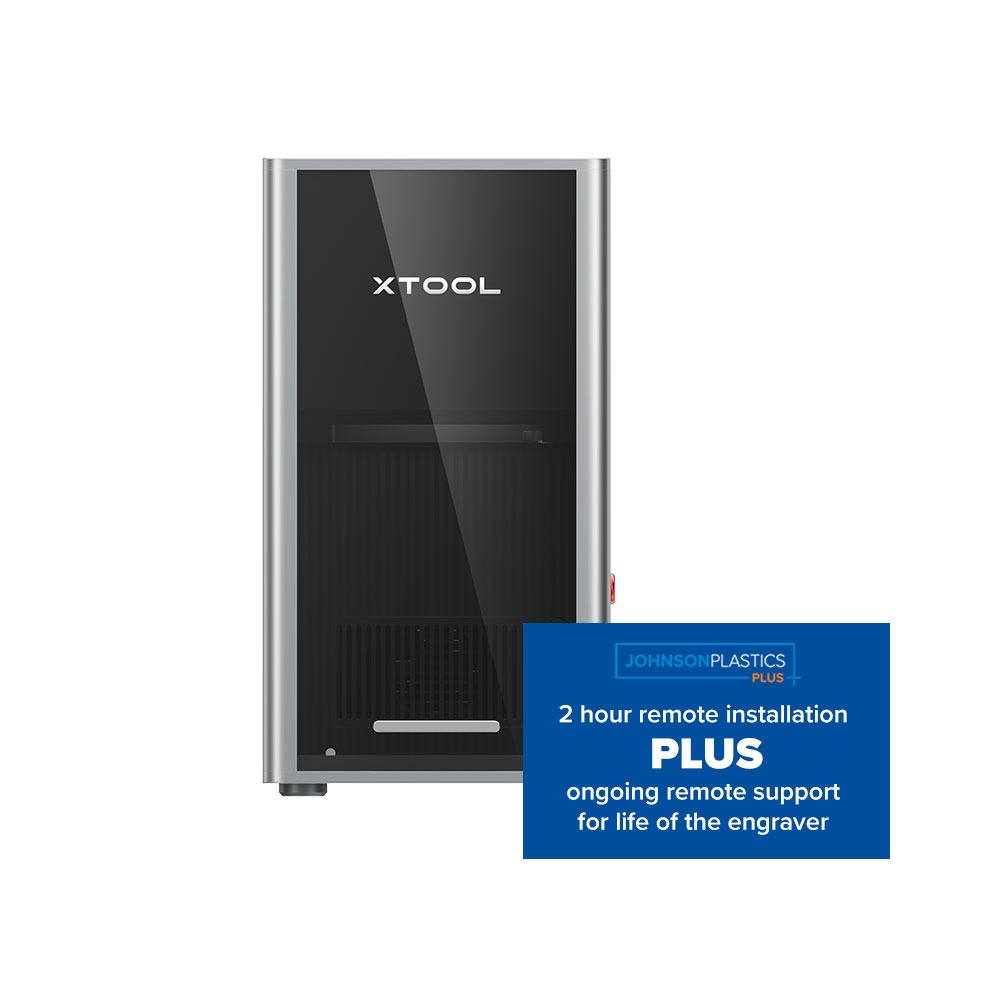

xTool F2 Ultra 60W MOPA & 40W Diode Dual Laser Engraver

The xTool F2 Ultra 60W MOPA & 40W Diode Dual Laser Engraver combines two laser technologies in a single machine, allowing businesses to customize metal and non-metal materials.

For customers new to laser equipment, the difference is simple: the 60W MOPA laser is the metal laser, while the 40W diode laser is designed for materials such as wood, leather, paper, MDF, and dark, opaque acrylic.

MOPA is a type of fiber laser that offers greater control over how it interacts with metal. That extra control allows the F2 Ultra to do more than basic metal engraving. It can create deep black marks, produce color effects on compatible stainless steel and titanium, engrave deeply into metal, create 3D relief-style designs, and even cut thin metal.

The 40W diode laser handles everyday cutting and engraving projects on non-metal materials, giving you the flexibility to switch between jewelry, industrial tags, signage, gifts, décor, promotional products and more without changing machines.

With processing speeds up to 15,000 mm/s, dual 48MP cameras, autofocus and camera-assisted positioning, the F2 Ultra is built for faster setup, precise engraving and small-batch production.

Features:

• Dual Laser System – Combines a 60W 1064nm MOPA fiber laser with a 40W blue diode laser for processing metals and non-metals in one machine
• 60W MOPA Fiber Laser – Engraves, marks, and cuts compatible metals directly without metal marking spray
• Engraves stainless steel, aluminum, brass, silver, platinum, titanium, gold and select plastics; supports deep engraving, relief engraving, dark high-contrast marking and more than 100 colors on compatible stainless steel and titanium
• Metal Cutting – Cuts thin metal parts for tags, jewelry, nameplates, inlays and other applications
• Cuts brass up to 0.08" (2 mm), stainless steel up to 0.08" (2 mm) and aluminum up to 0.04" (1 mm)
• 40W Diode Laser – Cuts and engraves wood, leather, paper, MDF, felt, dark opaque acrylic and other common non-metal materials
• Cuts wood up to 0.91" (23 mm) and acrylic up to 0.79" (20 mm) using multiple passes
• 3D & Relief Engraving – Create dimensional designs, deep engraving, embossing-style effects, coins, medallions and textured metal projects
• High-Speed Processing – Engraving speeds up to 15,000 mm/s for faster personalization, repeat jobs and production workflows
• Dual 48MP Cameras – Provides a detailed workspace preview for artwork positioning, visual alignment and batch processing
• Autofocus – Automatically establishes the proper focal position for compatible processing workflows
• Batch Processing – Camera-assisted positioning helps repeat artwork across multiple blanks and production pieces
• Large Work Area – Standard 8.6" x 8.6" (220 x 220 mm) processing area
• Expands to approximately 8.6" x 19.6" (220 x 500 mm) with the optional Auto Streamline Conveyor
• Enclosed Design – Enclosed body helps contain laser radiation and smoke during processing
• Smart Software – xTool Studio includes built-in material presets and AI-assisted features designed to simplify setup and reduce testing
• Class 4 Laser – Appropriate laser safety practices and protective equipment are required during operation

Add Ons:

• xTool RA3 Chuck Rotary
• xTool Streamline Conveyor
• xTool AP2 Air Purifier

Specifications:

• Work Area – 8.6" x 8.6" (220 x 220 mm)
• Extended Work Area – Approximately 8.6" x 19.6" (220 x 500 mm) with optional conveyor
• Wattage –
  • 60W MOPA Infrared Fiber Laser
  • 40W Diode Laser
• Laser Wavelength –
  • MOPA – 1064 ± 5 nm
  • Diode – 445 ± 15 nm
• Maximum Processing Speed – 590.55 ips (15,000 mm/s)
• Maximum Metal Cutting Thickness –
  • Brass – up to 0.08" (2 mm)
  • Stainless Steel – up to 0.08" (2 mm)
  • Aluminum – up to 0.04" (1 mm)
• Maximum Wood Cutting Thickness – Up to 0.91" (23 mm) using multiple passes
• Maximum Acrylic Cutting Thickness – up to 0.79" (20 mm) using multiple passes
• 60W MOPA Fiber Laser
  • Laser Cuttable Materials – Brass, stainless steel and aluminum
  • Laser Engravable Materials – Stainless steel, aluminum, brass, silver, platinum, titanium, gold and select plastics
• 40W Diode Laser
  • Laser Cuttable Material – Paper, wood, leather, MDF, felt, and some dark opaque acrylic
  • Laser Engravable Material – Paper, wood, leather, MDF, stainless steel, dark opaque acrylic, bamboo, fabric, dark glass, ceramic, jade, marble, brick, plated metal and painted metal
• Camera System – Dual 48MP cameras
• Camera Positioning Accuracy – 0.2 mm
• MOPA Laser Spot Size – 0.03 x 0.03 mm
• Diode Laser Spot Size – 0.08 x 0.1 mm
• Motion Accuracy – 0.00482 mm
• Laser Size – 11.57" x 16.88" x 20.51" (294 x 429 x 521 mm)
• Weight – 47 lbs (21.6 kg)
• Software – xTool Studio desktop software
• Operating System – Windows & macOS
• Connection – Wi-Fi / USB / IP
• Warranty – 1 year
• Supported File Types – SVG / DXF / JPG / JPEG / PNG / BMP / TIF

Applications:

• Industrial Tagging – Create brass plates, stainless steel tags, aluminum identification plates, asset tags, serial-number plates, equipment labels and component markings
• Awards & Recognition – Produce engraved metal awards, medallions, plaques, nameplates and premium recognition products
• Signage – Cut and engrave wood, acrylic and thin metal components for signs, plaques, nameplates and dimensional elements
• Personalized Gifts – Customize tumblers, jewelry, keepsakes, ornaments, coasters, drinkware and other gift items
• Promotional Products – Add names, logos, graphics and branding to metal and non-metal promotional merchandise
• Retail Personalization – Offer made-to-order engraving for jewelry, gifts, drinkware and branded merchandise
• On-Site Personalization – Customize products at markets, events, pop-up shops, trade shows and retail environments
• Craft & Maker Projects – Cut and engrave wood, leather, acrylic, paper and other popular crafting materials
• Product & Component Marking – Add serial numbers, logos, identification information and permanent marks to tools, parts and metal components

XTOOL F2 ULTRA 60W MOPA & 40W DIODE DUAL LASER ONLY PACKAGE CONTENTS:

• (1) xTool F2 ultra dual laser engraver
• (1) Touchscreen controller
• (1) Exhaust pipe
• (1) Power adapter
• (1) Power cable
• (1) USB cable
• (1) Key
• (1) Slatted panel/honeycomb
• (1) L-Shaped positioning piece
• (1) Lint-Free cloth
• (1) Screwdriver
• (1) Sample material pack
• (1) Quick start guide
• (1) Safety instructions
• $125 JPP BUCKS – Redeem on sheet + blanks

XTOOL F2 ULTRA 60W MOPA & 40W DIODE DUAL LASER AIR PURIFIER BUNDLE CONTENTS:

• (1) xTool F2 ultra dual laser engraver
• (1) xTool SafetyPro™ AP2 air purifier
• (1) Diode desktop laser sample kit ($60 value)
• (1) Stainless steel keychain
• (1) 10-pack stainless steel business card
• (1) Touchscreen controller
• (1) Exhaust pipe
• (1) Power adapter
• (1) Power cable
• (1) USB cable
• (1) Key
• (1) Slatted panel/honeycomb
• (1) L-Shaped positioning piece
• (1) Lint-Free cloth
• (1) Screwdriver
• (1) Sample material pack
• (1) Quick start guide
• (1) Safety instructions
• $125 JPP BUCKS – Redeem on sheet + blanks

XTOOL F2 ULTRA 60W MOPA & 40W DIODE DUAL LASER ALL-IN-ONE BUNDLE CONTENTS:

• (1) xTool F2 ultra dual laser engraver
• (1) xTool SafetyPro™ AP2 air purifier
• (1) xTool RA3 chuck rotary
• (1) Diode desktop laser sample kit ($60 value)
• (1) Stainless steel keychain
• (1) 10-pack stainless steel business card
• (1) 30oz Simply engraving tumbler
• (1) Touchscreen controller
• (1) Exhaust pipe
• (1) Power adapter
• (1) Power cable
• (1) USB cable
• (1) Key
• (1) Slatted panel/honeycomb
• (1) L-Shaped positioning piece
• (1) Lint-Free cloth
• (1) Screwdriver
• (1) Sample material pack
• (1) Quick start guide
• (1) Safety instructions
• $125 JPP BUCKS – Redeem on sheet + blanks

What is a MOPA laser?

MOPA stands for Master Oscillator Power Amplifier. It is a type of fiber laser that gives the operator greater control over laser pulse width and frequency.

That additional control makes the F2 Ultra's 60W MOPA laser especially useful for applications such as color marking on stainless steel and titanium, dark high-contrast metal marking, deep engraving, relief engraving, and precision metal processing.

Compared with a standard fiber laser, MOPA technology provides more control over how laser energy interacts with the material, allowing users to fine-tune the appearance, contrast, and depth of the finished mark.

What is the difference between the 60W MOPA laser and the 40W diode laser?

The two lasers are designed for different material groups and applications. The 60W MOPA fiber laser is primarily designed for metals. Use it for direct engraving, deep engraving, color marking, high-contrast marking, and cutting thin metals such as brass, stainless steel, and aluminum. The 40W diode laser is primarily designed for common non-metal materials such as wood, leather, paper, MDF, felt and dark opaque acrylic.

In simple terms:

• Use the 60W MOPA laser for metal engraving, metal marking and thin metal cutting.
• Use the 40W diode laser to cut and engrave wood, leather, acrylic, and other non-metals.

The dual-laser design allows the F2 Ultra to handle both material groups without requiring two separate laser machines.

Can the xTool F2 Ultra create color engraving on metal?

Yes. One of the major advantages of the F2 Ultra's MOPA laser is its ability to create more than 100 colors on compatible stainless steel and titanium.

MOPA pulse-width and frequency control allows the laser to produce different surface effects and colors. Exact colors vary based on the metal, surface finish and laser settings.

Can the xTool F2 Ultra cut metal?

Yes. Unlike many desktop laser engravers that only mark metal, the F2 Ultra's 60W MOPA laser can cut thin metal.

Maximum cutting capabilities include:

• Brass – up to 0.08" (2 mm)
• Stainless steel – up to 0.08" (2 mm)
• Aluminum – up to 0.04" (1 mm)

Actual cutting performance can vary based on material composition and processing settings.

Can the xTool F2 Ultra engrave deeply into metal?

Yes. The 60W MOPA laser supports deep metal engraving and relief-style processing. This makes the F2 Ultra suitable for applications such as coins, medallions, molds, textured artwork, jewelry, and dimensional metal designs.

The additional laser power and adjustable MOPA pulse settings allow users to control engraving depth and detail

Can the xTool F2 Ultra engrave tumblers and rings?

Yes. Pair the F2 Ultra with the optional xTool RA3 Rotary Attachment to engrave cylindrical and ring-shaped objects such as tumblers, mugs, bottles, bracelets, rings and ornaments.

Is the xTool F2 Ultra a Class 4 laser?

Yes. The xTool F2 Ultra is classified as a Class 4 laser.

Although the machine has an enclosed design, users should follow all required Class 4 laser safety procedures and wear appropriate protective equipment when operating it.

Who is the xTool F2 Ultra best for?

The xTool F2 Ultra is ideal for businesses, serious makers and creators who need to process both metals and non-metals.

It is especially well suited for jewelry businesses, personalization shops, engravers, sign shops, industrial tagging applications, promotional product businesses and makers producing higher-value metal products. Its combination of MOPA color marking, deep metal engraving, thin-metal cutting, high-speed processing and a 40W diode laser makes it a versatile choice for businesses that want to expand beyond standard engraving.
