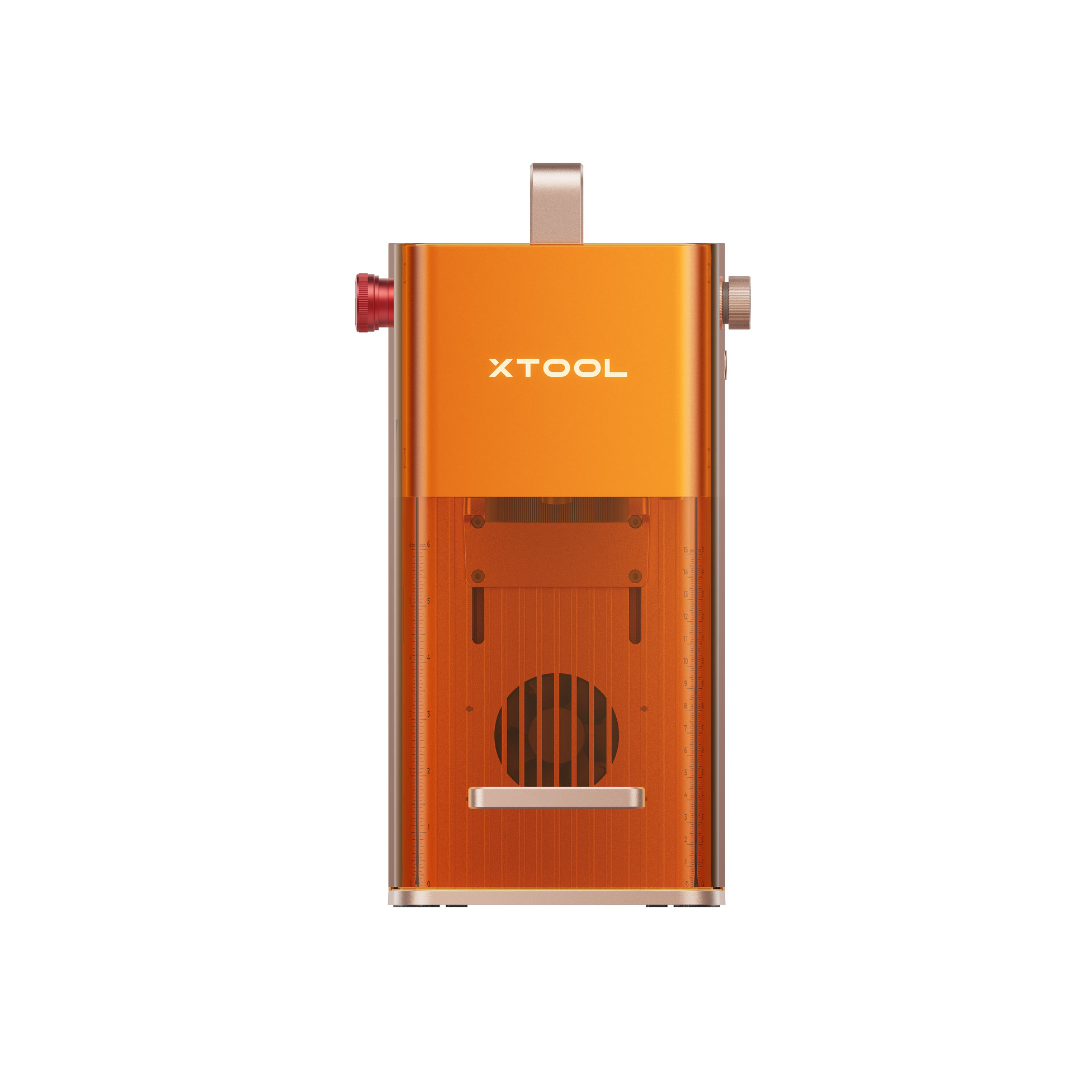

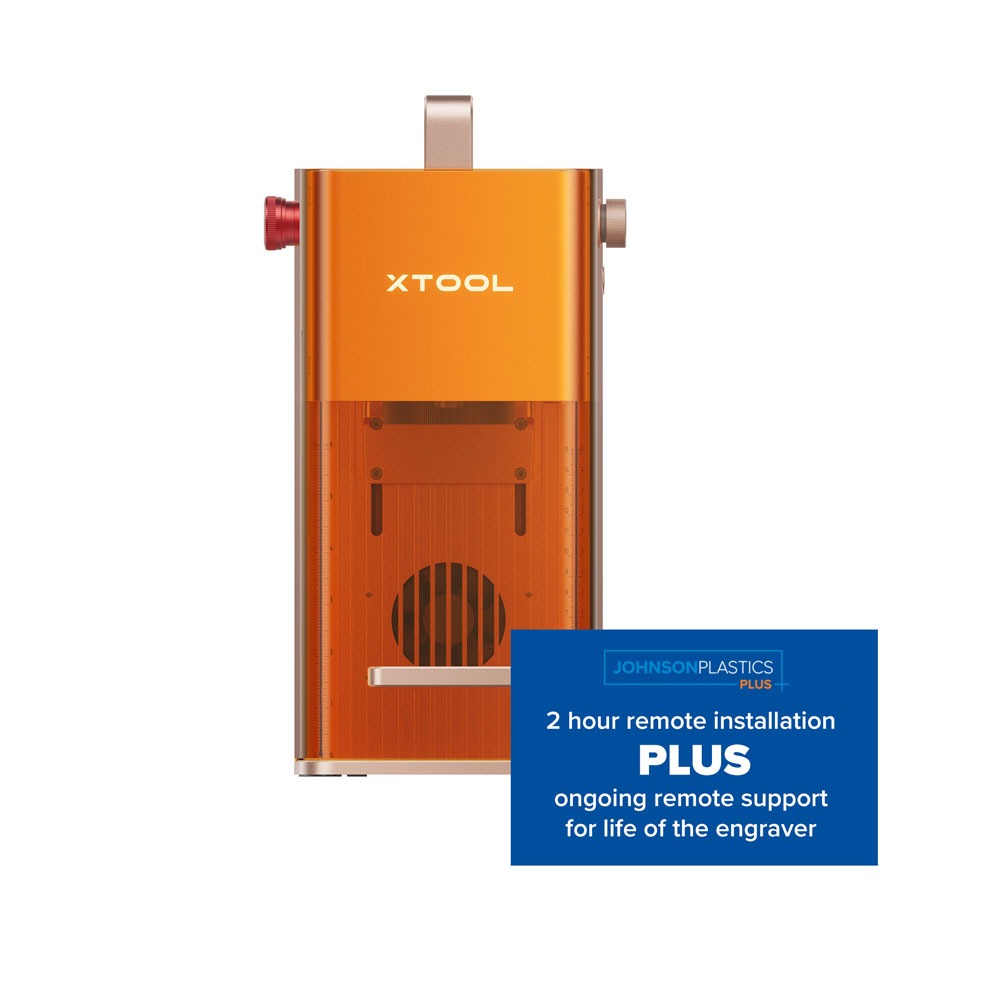

xTool F2 5W IR & 15W Diode Dual Laser Engraver

The xTool F2 5W IR & 15W Diode Portable Dual Laser Engraver combines two laser technologies in one compact machine. For new laser users, the difference is simple, the infrared laser is designed primarily for engraving metals and certain plastics, while the diode laser is designed for cutting and engraving common non-metal materials such as wood, leather, paper, MDF, and dark opaque acrylic.

The xTool F2 can engrave metal directly without additional metal marking sprays or pastes, saving time and money. Its 5W infrared laser is designed for detailed engraving and marking on brass, gold, titanium, stainless steel, anodized aluminum, aluminum, silver, iron, and select plastics. It can also engrave ceramics and slate, while the 15W diode laser handles many common craft materials.

With engraving speeds up to 6,000 mm/s, a built-in 50MP camera, autofocus and camera-assisted positioning, the F2 is designed to make personalized products quickly and accurately. Position artwork using a workspace preview, automatically focus on the material, and use batch features to repeat designs across multiple products.

Compact and portable, the F2 is especially useful for businesses that want to personalize products while customers wait. Create engraved jewelry, tumblers, keychains, tags, gifts, coasters, promotional products, and more from a machine small enough to travel between your studio, events, and customer locations.

Features:

• Dual Laser System –Combines a 5W 1064nm infrared laser and 15W blue diode laser in one portable machine
• 5W Infrared Laser – Engraves metals directly without metal marking spray and supports color and black metal marking
• Engraves brass, gold, titanium, stainless steel, anodized aluminum, aluminum, silver, iron, select plastics, ceramic and slate; creates color effects on stainless steel and dark, high-contrast marks on compatible metals
• 15W Diode Laser – Cuts and engraves wood, leather, paper, MDF, felt, dark opaque acrylic and other common laser materials
• Cuts wood up to 0.59" (15 mm) using multiple passes
• High-Speed Engraving – Processing speeds up to 6,000 mm/s for faster personalization and batch production
• 50MP Camera – Provides a detailed 1:1 workspace preview for precise artwork positioning and reduced material waste
• Automatic & Manual Focus – Quickly establish the correct focal distance for different products and materials
• Batch Processing – Camera-assisted positioning and auto-fill capabilities simplify engraving multiple items in a single workflow
• High-Resolution Engraving – Produces fine lines, small details and high-contrast image engraving
• 3D Relief Engraving – Create dimensional engraving and relief-style effects on compatible materials
• Curved-Surface Engraving – Software-supported processing helps position designs on compatible curved objects
• Rotary Engraving Compatible – Add an optional RA3 or compatible rotary attachment for tumblers, mugs, rings and other cylindrical products
• Expandable Work Area – Standard 4.53" x 4.53" work area expands to approximately 4.53" x 15.75" with the optional Slide Extension
• Maximum Processing Height – 4.72" (120 mm) for engraving taller finished products
• Portable Design – compact footprint makes the F2 ideal for markets, events, pop-ups and mobile personalization businesses
• Built-In Smoke Extraction Fan – Automatically vents smoke generated during processing
• Integrated Safety Features – Protective enclosure, emergency stop and overheat protection
• Class 4 Laser – Appropriate laser safety precautions and protective equipment are required during operation
• xTool Studio Software – Design, position, and process projects using xTool's laser-making software

Add Ons:

• xTool RA3 Chuck Rotary
• xTool F2 Slide Extension
• xTool Desktop Air Purifier

Specifications:

• Work Area – 4.53" x 4.53" (115 x 115 mm)
• Extended Work Area – 4.53" x 15.75" (115 x 400 mm) with optional Slide Extension
• Wattage – 15W Diode | 5W Infrared
• Laser Wavelength –
  • Diode – 445 ± 15 nm
  • Infrared – 1064 ± 5 nm
• Maximum Processing Speed – 236.22 ips (6,000 mm/s)
• Maximum Processing Height – 4.72" (120 mm)
• 15W Diode
  • Laser Cuttable Materials – Paper, wood, leather, MDF, felt and some dark opaque acrylic
  • Laser Engravable Materials – Paper, wood, leather, MDF, bamboo, fabric, dark opaque acrylic, dark glass, ceramic, jade, marble, coated metal, plated metal and painted metal
• 5W Infrared
  • Laser Engravable Materials – brass, gold, titanium, stainless steel, anodized aluminum, aluminum, silver, iron, select plastics, ceramic, slate
• Maximum Wood Cutting Thickness – Up to 0.59" (15 mm) in multiple passes
• Camera – Built-In 50MP camera
• Focus – Automatic and manual focus
• Laser Size – 6.89" x 9.33" x 13.15" (175 x 237 x 334 mm)
• Weight – 10.14 lbs (4.60 kg)
• Software – xTool Studio desktop software
• Connection – Wi-Fi / USB / IP
• Laser Safety Classification – Class 4
• Warranty – 1 year
• Supported File Types – SVG / DXF / JPG / JPEG / PNG / BMP / TIF

Applications:

• On-Site Personalization – Customize products while customers wait at craft fairs, markets, weddings, festivals, and pop-up events
• Personalized Gifts – Engrave keychains, jewelry, keepsakes, ornaments, coasters, drinkware and other gift items
• Promotional Products – Add names, logos, and graphics to customer and corporate merchandise
• Craft & Maker Projects – Cut and engrave wood, leather, acrylic and other popular crafting materials
• Industrial Tagging – Engrave brass plates, metal tags, equipment labels, identification plates, asset tags and other industrial marking applications
• Small-Batch Production – Process multiple coasters, tags, keychains, nameplates and other products using camera-assisted batch workflows
• Retail Personalization – Offer made-to-order engraving in boutiques, gift shops and event environments

XTOOL F2 5W IR & 15W DIODE DUAL LASER ENGRAVER ONLY CONTENTS:

• (1) xTool F2 dual laser engraver
• (1) Exhaust pipe
• (1) RA3 support block
• (1) Slatted panel/honeycomb
• (1) L-Shaped positioning piece
• (1) Power adapter
• (1) Power cable
• (1) USB cable
• (1) Grease
• (1) Pre-Installed key
• (1) Screwdriver
• (1) Lint-Free cloth
• (1) Material pack
• (1) Quick start guide
• (1) Safety instructions
• $100 JPP BUCKS – Redeem on sheet + blanks

XTOOL F2 5W IR & 15W DIODE DUAL LASER ENGRAVER & AIR PURIFIER BUNDLE CONTENTS:

• (1) xTool F2 dual laser engraver
• (1) xTool F2 desktop air purifier
• (1) Diode desktop laser sample kit ($60 value)
• (1) Exhaust pipe
• (1) RA3 support block
• (1) Slatted panel/honeycomb
• (1) L-Shaped positioning piece
• (1) Power adapter
• (1) Power cable
• (1) USB cable
• (1) Grease
• (1) Pre-Installed key
• (1) Screwdriver
• (1) Lint-Free cloth
• (1) Material pack
• (1) Quick start guide
• (1) Safety instructions
• $100 JPP BUCKS – Redeem on sheet + blanks

XTOOL F2 5W IR & 15W DIODE DUAL LASER ALL-IN-ONE BUNDLE CONTENTS:

• (1) xTool F2 dual laser engraver
• (1) xTool F2 desktop air purifier
• (1) xTool RA3 chuck rotary
• (1) xTool F2 slide extension
• (1) Diode desktop laser sample kit ($60 value)
• (1) 30oz simply engraving tumbler
• (1) Exhaust pipe
• (1) RA3 support block
• (1) Slatted panel/honeycomb
• (1) L-Shaped positioning piece
• (1) Power adapter
• (1) Power cable
• (1) USB cable
• (1) Grease
• (1) Pre-Installed key
• (1) Screwdriver
• (1) Lint-Free cloth
• (1) Material pack
• (1) Quick start guide
• (1) Safety instructions
• $100 JPP BUCKS – Redeem on sheet + blanks

What is the difference between the 5W IR laser and the 15W diode laser?

For new laser users, think of the two lasers as specialists for different materials. The 5W IR laser (1064nm) is designed for engraving metals like brass, gold, titanium, stainless steel, anodized aluminum, silver, and iron, as well as some plastics and ceramics. The 15W blue diode laser (about 445nm) is better for cutting and engraving wood, leather, paper, MDF, felt, and dark opaque acrylic. In simple terms: use the 5W IR laser for metal and compatible plastics, and the 15W diode for wood, leather, paper, MDF, and dark acrylic. Having both in the F2 expands material options without needing two separate machines.

Can the xTool F2 create color engraving on metal?

The F2 can create color marking on stainless steel by controlling the interaction between the infrared laser and the metal surface. Available colors and results vary depending on the material, finish, and processing settings.

It can also create dark, high-contrast marks on a variety of compatible metals.

Does the xTool F2 automatically focus?

Yes. The xTool F2 supports automatic focusing, helping determine the appropriate focal height before engraving or cutting. Manual focusing is also available when needed.

Can the xTool F2 engrave tumblers and rings?

Yes. Pair the F2 with the optional xTool MagSwap™ RA3 Rotary Attachment or another compatible rotary attachment to engrave cylindrical and ring-shaped objects such as tumblers, bottles, mugs, rings and ornaments.

Is the xTool F2 a Class 1 laser?

No. The xTool F2 is classified as a Class 4 laser.

Although the machine includes a protective enclosure, the F2 can operate with the enclosure open. Because the laser beam can potentially be exposed during operation, xTool classifies the machine as Class 4. Proper laser safety practices and appropriate protective equipment should always be used.

Who is the xTool F2 best for?

The xTool F2 is a ideal choice for hobbyists, small personalization businesses, craft fair vendors, Etsy sellers, gift shops and businesses offering live event engraving.

Its combination of portable direct metal engraving without metal marking spray, fast processing, non-metal cutting, camera-assisted positioning and optional rotary and extended-work-area accessories makes it especially useful for businesses that want a versatile laser without dedicating space to a large production machine.
