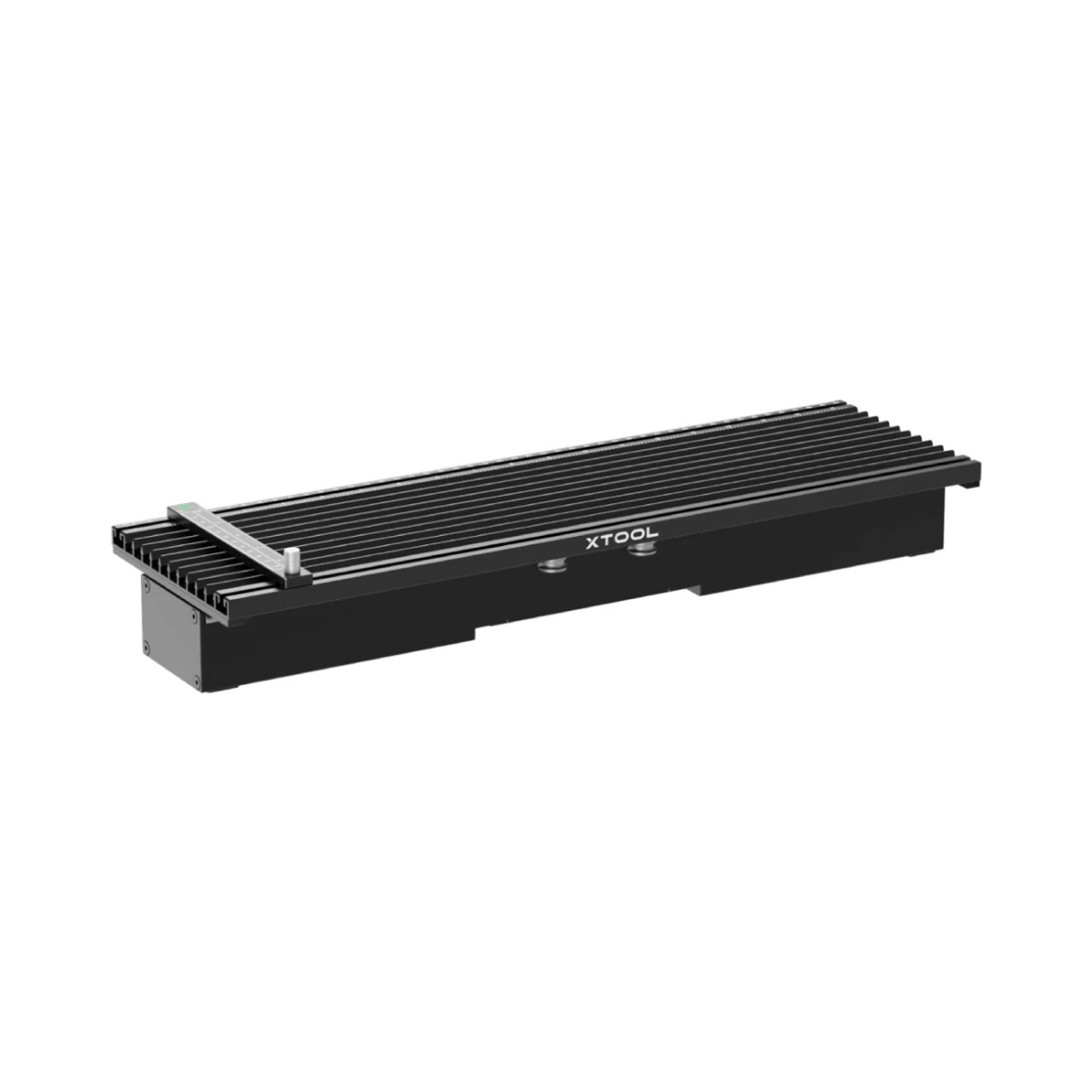

xTool Slide Extension for F2, F1 & F1 Lite

The xTool Slide Extension expands the processing area of compatible xTool lasers, making it easier to engrave and cut longer materials or to process multiple items in a single setup.

When paired with the xTool F2, F1, or F1 Lite, the Slide Extension increases the standard 4.53" x 4.53" (115 x 115 mm) work area to 4.53" x 15.75" (115 x 400 mm), giving you nearly four times the working length for signs, rulers, bookmarks, pens, nameplates, and batch production.

During processing, the laser moves along the Slide Extension in sections, automatically shifting from one area to the next to complete a larger design. Scale rulers and coordinate-based positioning help keep artwork aligned across the expanded work area, reducing guesswork in oversized projects.

The Slide Extension arrives preassembled and includes five material clamps, a cutting panel, and the hardware needed to connect it to your compatible xTool laser.

Features:

• Expanded Work Area – Increases the processing area to 4.53" x 15.75" (115 x 400 mm) for longer projects and batch production, with material thickness up to 2.08" (53 mm)
• Automatic Slide Processing – Moves the laser along the extension to complete larger designs in multiple sections without manually repositioning the material
• Precise Material Positioning – Scale rulers align with the xTool software coordinate system and include both inch and millimeter measurements
• 5 Material Clamps – Includes 2 clamps for thinner material edges and 3 clamps for thicker or irregularly shaped projects
• Cutting Panel – Provides space beneath the material for improved airflow and cleaner cutting results
• Cutting Capabilities – Supports cutting up to 0.31" (8 mm) basswood plywood, 0.20" (5 mm) black acrylic, 0.12" (3 mm) leather, and 0.14" (3.5 mm) cardboard with the xTool F1 under supported settings
• Batch Processing – Arrange multiple small items across the extended bed and process them in a single workflow
• Manual & Auto Focus Compatible – Maintains compatible focusing and framing functions while using the Slide Extension
• Preassembled Design – Arrives ready to connect using the included USB cable for quick setup in xTool software
• Compatible xTool Lasers – Designed for xTool F2, F1 and F1 Lite; the xTool F1 Ultra requires a different Slide Extension

Specifications:

• Extended Work Area – 4.53" x 15.75" (115 x 400 mm)
• Maximum Material Width – 4.53" (115 mm)
• Maximum Material Length – 15.75" (400 mm)
• Maximum Processing Thickness – 2.08" (53 mm)
• Maximum Material Thickness with Clamps – Approximately 0.24" (6 mm)
• Maximum Slide Extension Processing Speed – 160 mm/s
• Maximum Cutting Thickness with xTool F1 –
  • Basswood Plywood – up to 0.31" (8 mm)
  • Black Acrylic – up to 0.20" (5 mm)
  • Leather – up to 0.12" (3 mm)
  • Cardboard – up to 0.14" (3.5 mm)
• Positioning – Scale rulers with absolute coordinate positioning
• Measurement Scale – Inches and millimeters
• Material Clamps – 5
• Connection – USB
• Assembly – Preassembled
• Compatible Machines – xTool F2, F1 and F1 Lite
