xTool Intelligent Conveyor Feeder for P3

Expand the capabilities of your xTool P3 with the xTool Intelligent Conveyor Feeder, designed for large-format projects and automated production. The feeder continuously moves materials through the laser, making it easier to produce oversized signage, furniture components, long designs, and larger batch runs without repeated manual repositioning.

Simply place your material, position your design in the preview, and let the system handle clamping, material positioning, and feeding. Intelligent rollers automatically adjust pressure based on material thickness to provide smooth, stable movement and consistent alignment throughout the job.

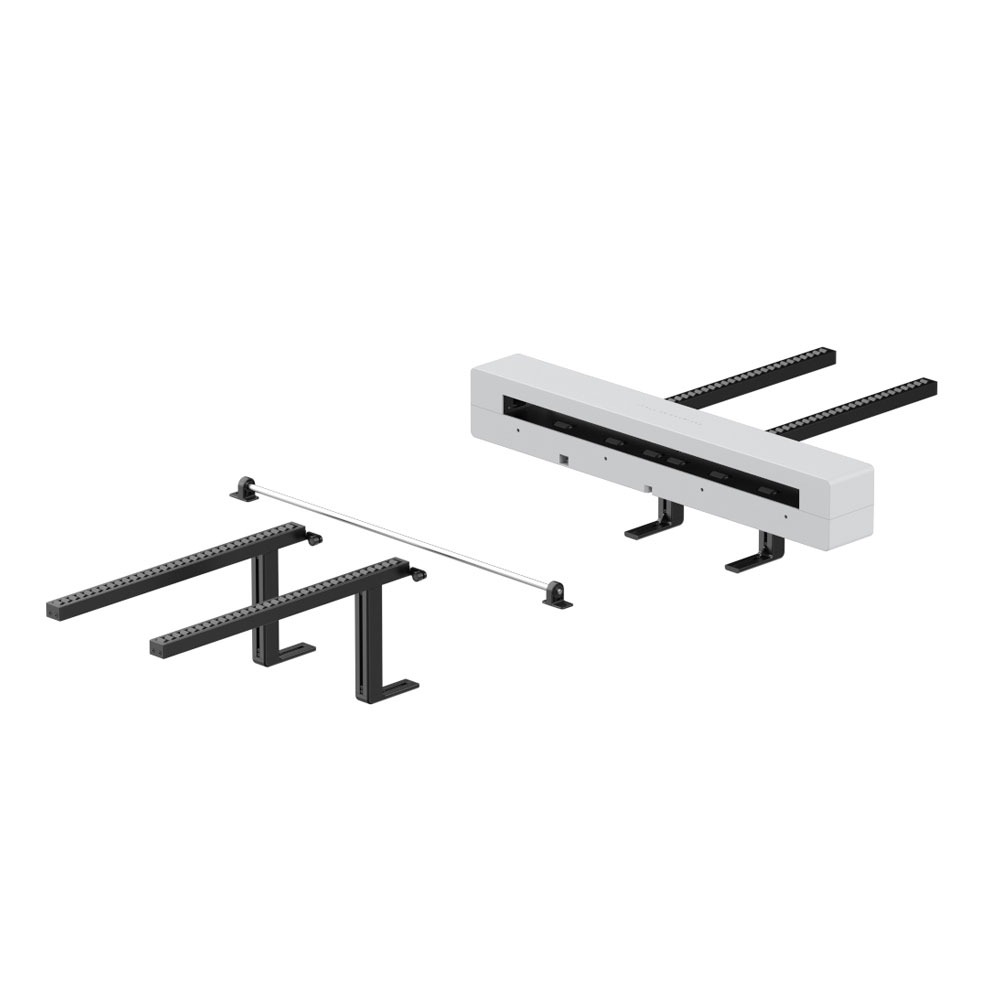

The feeder base installs once, while the suspended rails attach as needed for quick setup and efficient storage. Additional rails can be added to accommodate longer materials, giving you greater flexibility for continuous cutting and engraving.

Specifications

• Continuous Engraving & Cutting – Automatically feeds materials for non-stop production
• Extended Work Area – Expands beyond the standard P3 workspace for large projects
• Precision Alignment – Built-in sensors help maintain consistent tracking and registration
• Batch Production Ready – Handles multiple pieces in one automated workflow
• Dimensions – 29.92" x 3.94" x 4.49"
• Maximum Material Width – 24.01"
• Expandable Standard Length – Up to 59"
• Maximum Material Thickness/Height – 1.02"
• Maximum Feeding Speed – 200 mm/s
