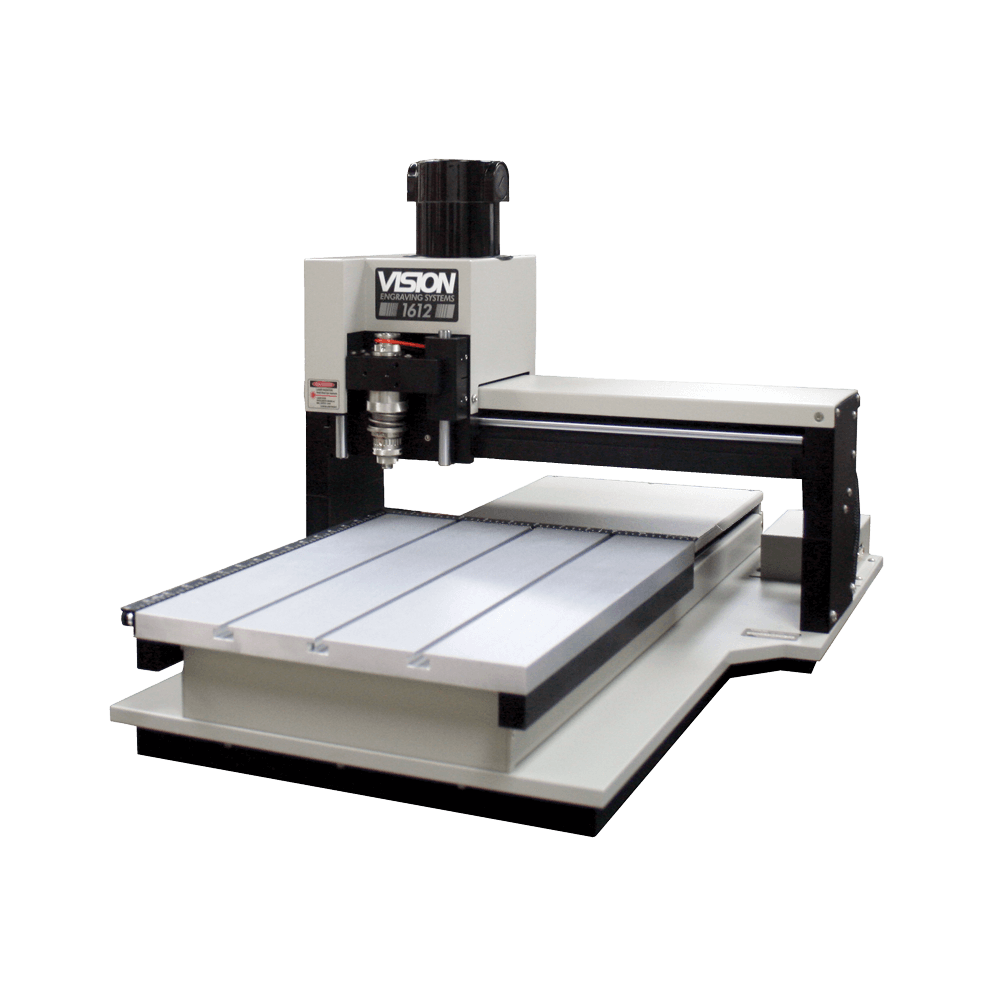

Vision 1612 Pro S5 Desktop Rotary Engraver

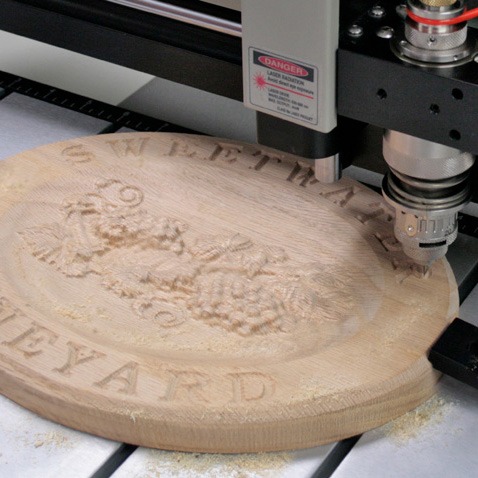

The Vision 1612 Pro S5 rotary engraver is the premier medium-format desktop engraving machine suitable for both light and heavy-duty applications. This machine features a 16" x 12" aluminum T-slot table, delivering outstanding precision and performance for various wood, plastic, and metal materials.

Perfect for budget-minded professionals, the 1612 Pro S5 combines industrial-grade features with a compact design, making it an ideal choice for engraving shops and businesses of every scale.

With its rigid construction and advanced capabilities, this engraver handles everything from trophies and plaques to ADA Braille signage, tool and die work, and deep metal cutting, providing a reliable solution for various applications.

Features:

• V-touch multi-functional touch screen
• Removable aluminum T-slot table with ruled edge guides
• Vacuum chip removal system
• Red laser pointer perfect for previewing placement before engraving
• Electronic sensor for automatic surface settings

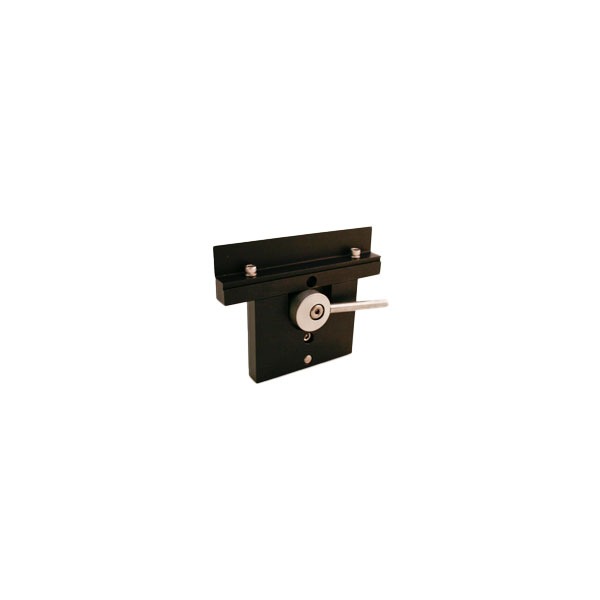

• Quick-lock vise and multi-mat
• Vision Series 5 Controller and V-Touch Pendant offer an intuitive, touchscreen interface, enhanced connectivity, versatile 3-D and 2-1/2-D capabilities, and efficient functionality for engraving and routing.
• Minimal maintenance
• Made in the USA

Recommended products:

• Raster Braille Spheres
• Rotary Engraver Bits and Cutters
• Rotary Engravable Sheet Material

Specifications:

• Work Area - 16" x 12" - maximum length 18.5", height 5"
• Spindle Clearance - up to 1.75"
• Spindle Type - 1/4" top load
• Table Resolution - .0002"
• Size (W x D x H) – 31.5" x 21" x 19"
• Weight – 250 lbs
• Software – Vision Expert, dongle included
• Operating System - Windows
• Interface – Ethernet
• Power – 110/220V 5 Amp

Applications:

• Trophies and plaques
• ADA Braille signage
• Gift items & notary seals
• Tool and die work
• Tags and plates
• Deep metal cutting
• Parts marking
• Plastic engraving
• Control panels and more

1612 Pro S5 Desktop Engraver Includes:

• Vision 1612 Pro S5 Rotary Engraver
• (5) 1/4" Flexible Plastic Cutter, 0.010"- 0.090" Tip 6 1/2" Long
• (2) 1/4" Brass & Aluminum Cutter, 0.030"- 0.045" Tip 6 1/2" Long
• (3) 1/4" Stainless Steel Cutter, 0.010"- 0.045" Tip 6 1/2" Long
• (4) 1/4" Parallel Flexible Plastic Cutter, 0.060"- 0.125" Tip 6 1/2" Long
• (4) 1/4" Flexible Plastic Cutter Beveler, 1/16" – 1/8" Material 0.060" Tip 6 1/2" Long
• Vacuum Chip Removal System
• Vision Expert, Dongle Software License
• 16" x 12" Multi-Mat
• Quick-Lock Vise Assembly
• Engraving Tool Holder
• Stand
• Two-Day On-Site Training
• 2-Year Limited Warranty

1612 Pro S5 Desktop Engraver ADA Bundle Includes:

• Vision 1612 Pro S5 Rotary Engraver
• Raster Braille Kit
• Braille Pen Bracket
• (5) 1/4" Flexible Plastic Cutter, 0.010"- 0.090" Tip 6 1/2" Long
• (2) 1/4" Braille Profile Cutter, 0.015" Tip 6 1/2" Long
• (2) 1/4" Braille Drill Cutter, 0.060" Tip 6 1/2" Long
• (4) 1/4" Parallel Flexible Plastic Cutter, 0.060" - 0.125" Tip 6 1/2" Long
• (4) 1/4" Flexible Plastic Cutter Beveler, 1/16" - 1/8" Material 0.060" Tip 6 1/2" Long
• Vacuum Chip Removal System
• Vision Expert, Dongle Software License
• 16" x 12" Multi-Mat
• Quick-Lock Vise Assembly
• Engraving Tool Holder
• Stand
• Two-Day On-Site Training
• 2-Year Limited Warranty

What is a chip extractor?

A chip extractor is a device or tool used in machining, engraving, or similar processes to remove debris, such as chips, dust, or shavings, created during operations like cutting, milling, or engraving. In engraving machines like the Vision 1612 Pro S5, a chip extractor helps maintain a clean work environment by removing the material waste generated during engraving or cutting. This ensures better visibility of the work surface, prevents the chips from interfering with the engraving process, and helps extend the machine’s life by preventing buildup in sensitive components.

Why are Vision 1612 Pro S5 rotary engravers great for ADA signs?

The Vision 1612 Pro S5 Desktop Rotary Engraver is ideal for creating ADA-compliant signs due to its precision, ensuring accurate text and Braille engraving. It can handle a variety of materials, including those commonly used for ADA signage, such as acrylic and plastic. The engraver’s high-speed capability allows for efficient production, while its user-friendly software makes it easy to create customized, consistent results. Its compact design makes it a great choice for small businesses or workshops producing ADA signs.
